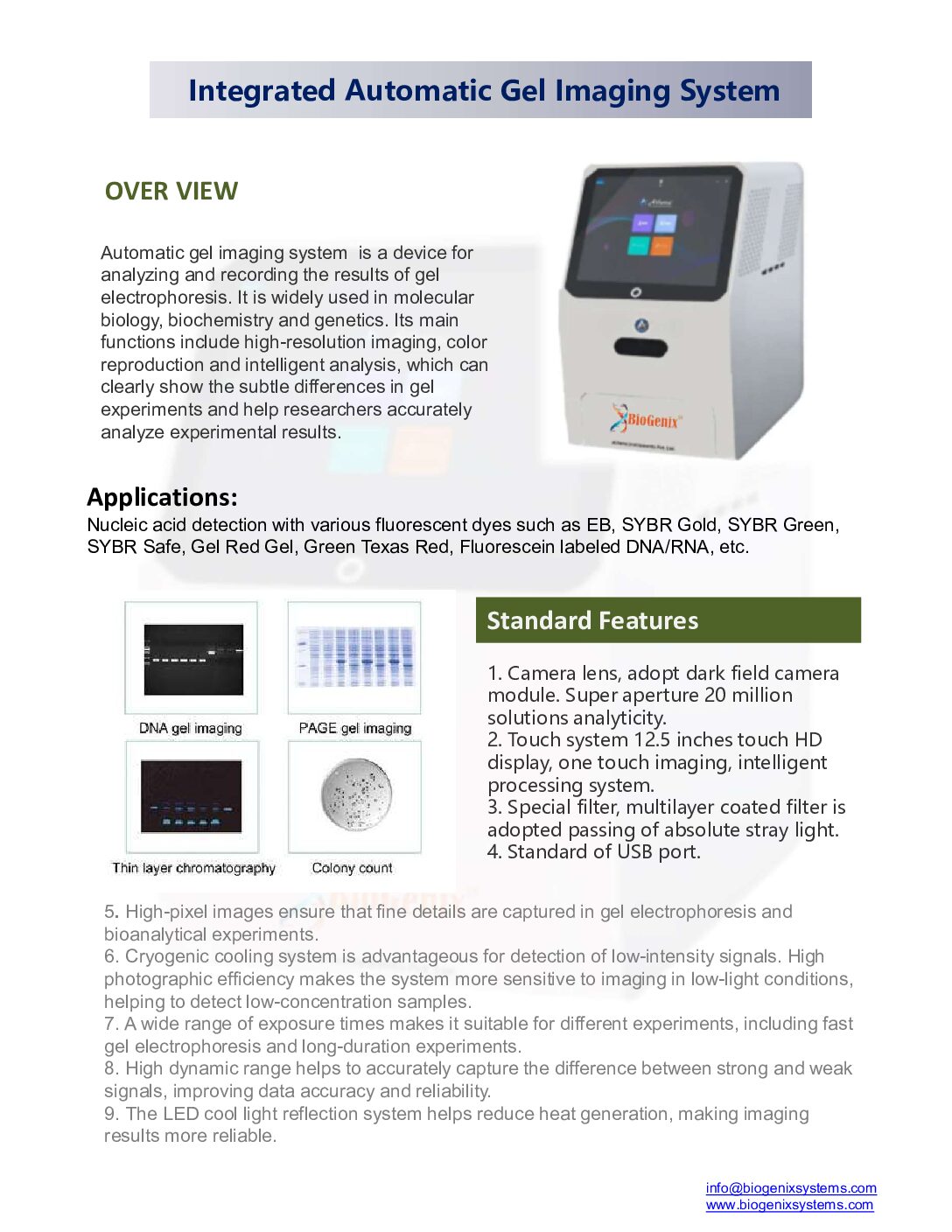

Automatic gel imaging system is a device for analyzing and recording the results of gel electrophoresis. It is widely used in molecular biology, biochemistry and genetics. Its main functions include high-resolution imaging, color reproduction and intelligent analysis, which can clearly show the subtle differences in gel experiments and help researchers accurately analyze experimental results.
| Parent Category | GEL DOCUMENTATION SYSTEM, |
|---|---|
| Subcategory | LABORATORY INSTRUMENTS AND EQUIPMENTS, |
Description
Automatic gel imaging system is a device for analyzing and recording the results of gel electrophoresis. It is widely used in molecular biology, biochemistry and genetics. Its main functions include high-resolution imaging, color reproduction and intelligent analysis, which can clearly show the subtle differences in gel experiments and help researchers accurately analyze experimental results.
Applications:
Nucleic acid detection with various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red Gel, Green Texas Red, Fluorescein labeled DNA/RNA, etc.
- Camera lens, adopt dark field camera module. Super aperture 20 million solutions analyticity.
- Touch system 12.5 inches touch HD display, one touch imaging, intelligent processing system.
- Special filter, multilayer coated filter is adopted passing of absolute stray light.
4. Standard of USB port.
| Model | BS-AGX3 |
| Camera Resolution | 6.0MP |
| Photosensitive Efficiency | ≥79% |
| Exposure Time | 1ms~5000ms |
| Pixel Density | 16 Bits(0~65535) |
| OD | ≥4.8OD |
| Lens | Large aperture autofocus lens, 20million auto focus lens |
| UV Transmission | 302nm, optionalother transmitted blue light |
| White Light Reflection | LED reflection(cold light) |
| White Light Transmission | White light emitting panel |
| Filter | Standard 590nm, other optional |
| Shooting Area | 21*21cm |
| Timer Shut Down | 1~60min |
| Touch System | 12.5-inch touch system |
| Power Supply | 110~240V, 50/60Hz |
| Packing Size | 450*462*666mm |
| Gross Weight | 22.3kg |
